WayPonEV CM3588 Plus NAS Network Storage Module - Rockchip RK3588 8-Core CPU, 32GB RAM, 256GB eMMC - High Performance Home Cloud Server, AI Deep Learning & Laptop Replacement for Data Storage, Media Streaming & Smart Office Solutions

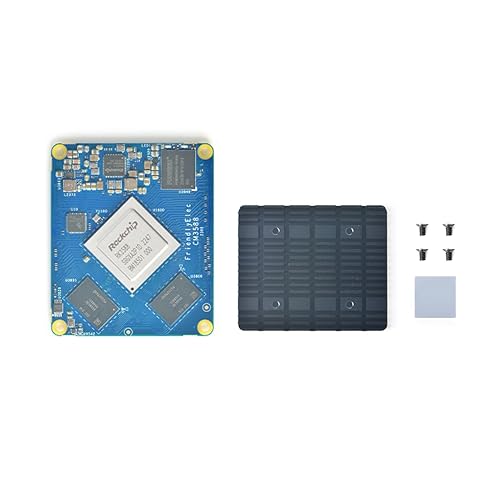

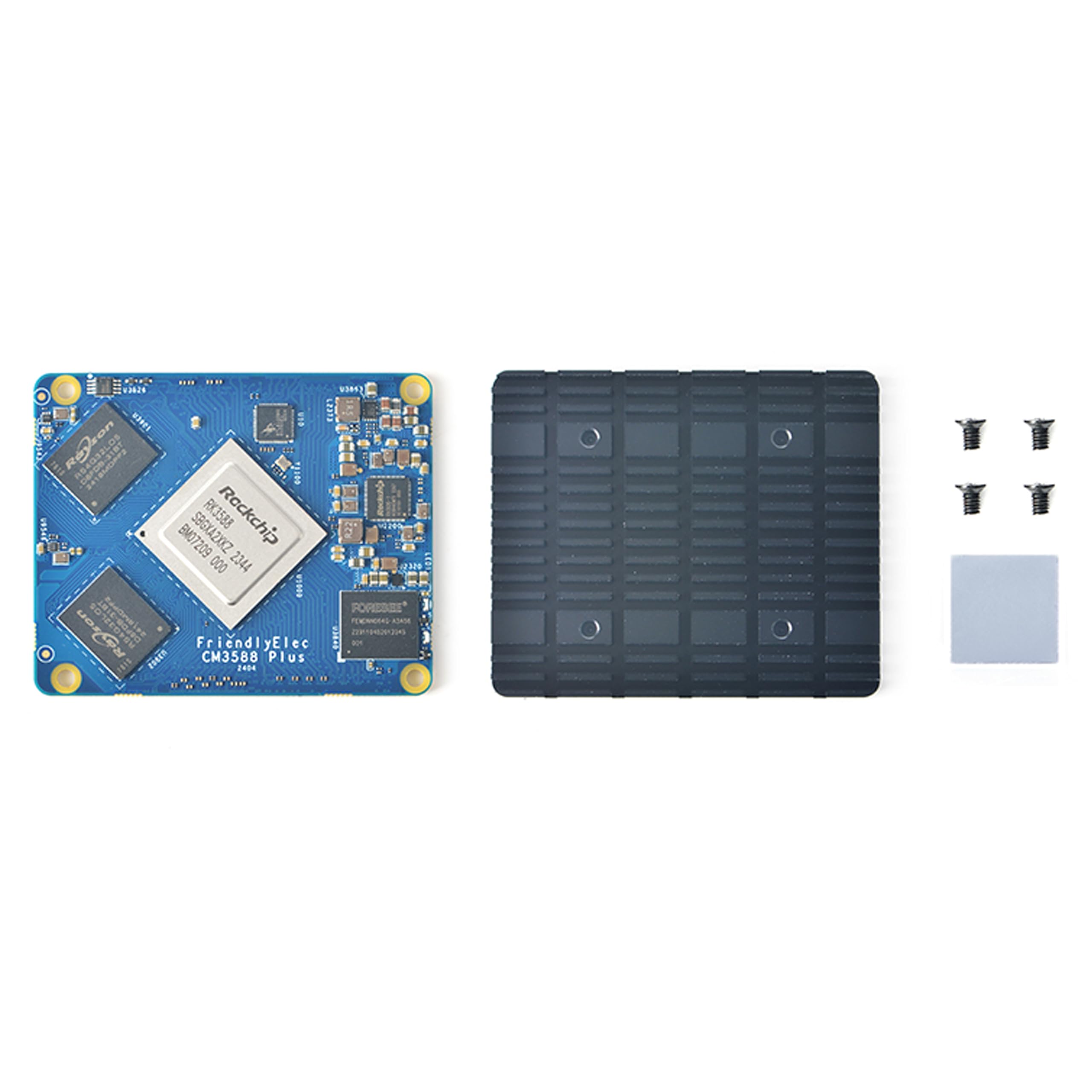

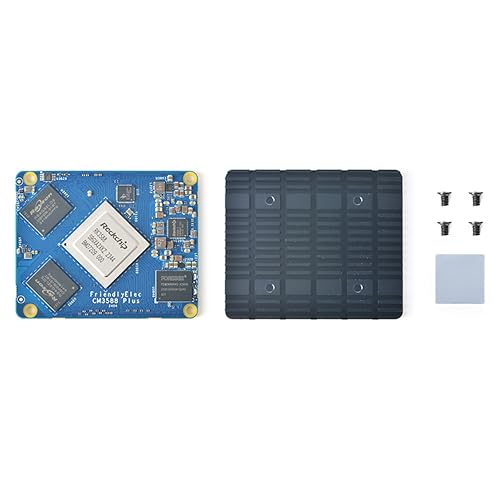

-Package Content-CM3588/CM3588 Plus CPU Core Board x1 (Not include Carrier Board)Heat Sink Set x1-Technical Support- Wiki:"wiki.friendlyelec.com/wiki/index.php/CM3588".Getting Started: "wiki.friendlyelec.com/wiki/index.php/CM3588#Get_Started".Please click "WayPonDEV" and ask a question.

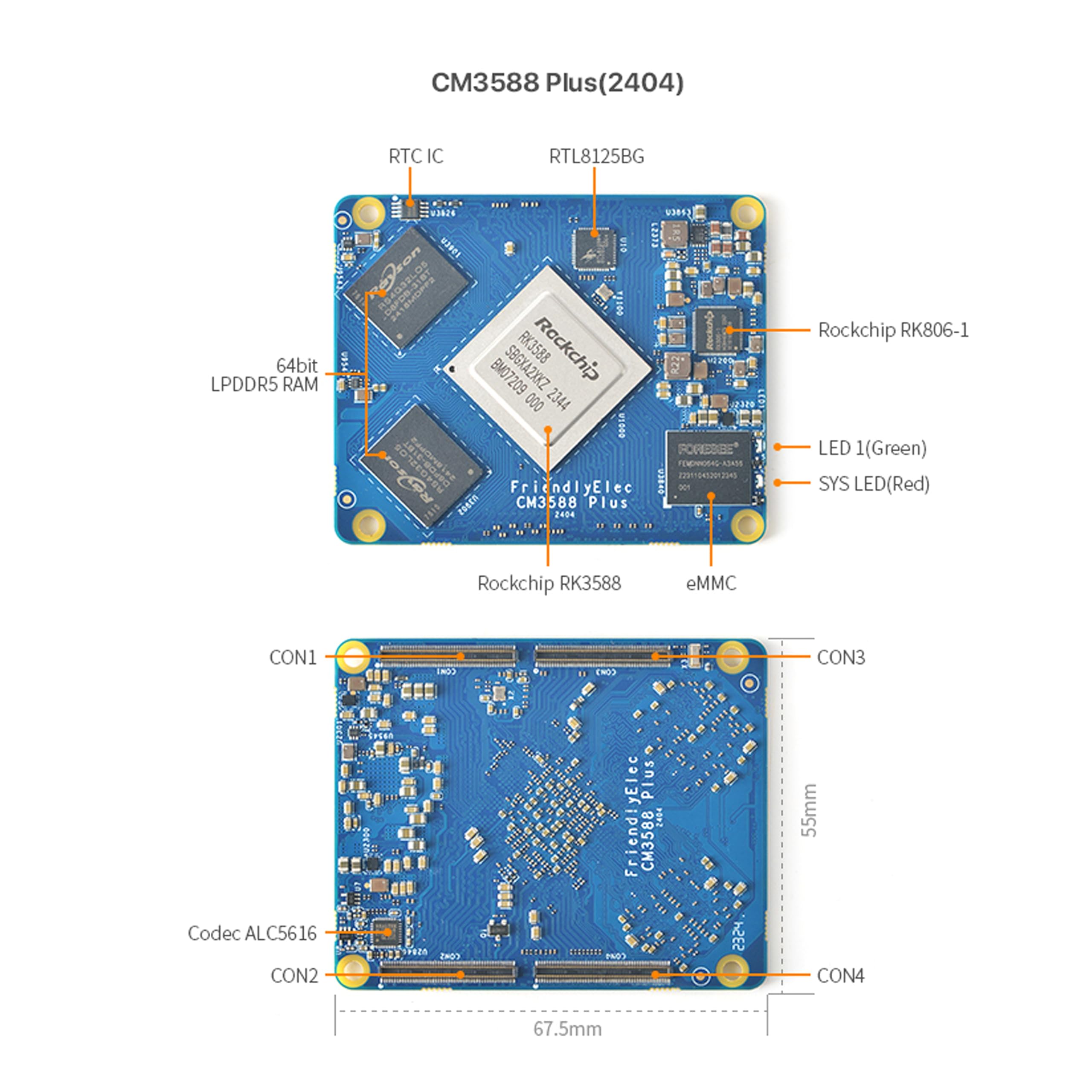

High Performance CPU The CM3588 is a high performance ARM module. It is based on Rockchip’s RK3588 SoC. The regular version has 4/8/16GB LPDDR4x (up to 2133MHz) or 32GB LPDDR5 RAM (up to 2400MHz), 0GB/64GB/256GB eMMC Flash(optional), at HS400 mode. The CM3588 have four 100-pin connectors, exposing nearly all IO resources. MicroSD interface, support up to SDR104 mode.

Rockchip RK3588 SoC CM3588 NAS CPU Board onboard Quad-core ARM Cortex-A76( up to 2.4GHz) and quad-core Cortex-A55 CPU (up to 1.8GHz) CPU, 6TOPs NPU, supports INT4/INT8/INT16/FP16. Onboard Mali-G610 MP4 GPU, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2. CM3588 Carrier Board onboard PCIe 2.5G ethernet controller (RTL8125B).

8K Video Decoding and Encoding The CM3588 NAS computing module cpu board onboard VPU, support 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder，it can decode and play videos in formats such as up to 8K60p H.265/VP9 and 8K30p H.264, with the ability to record 4K60p H.265 videos.

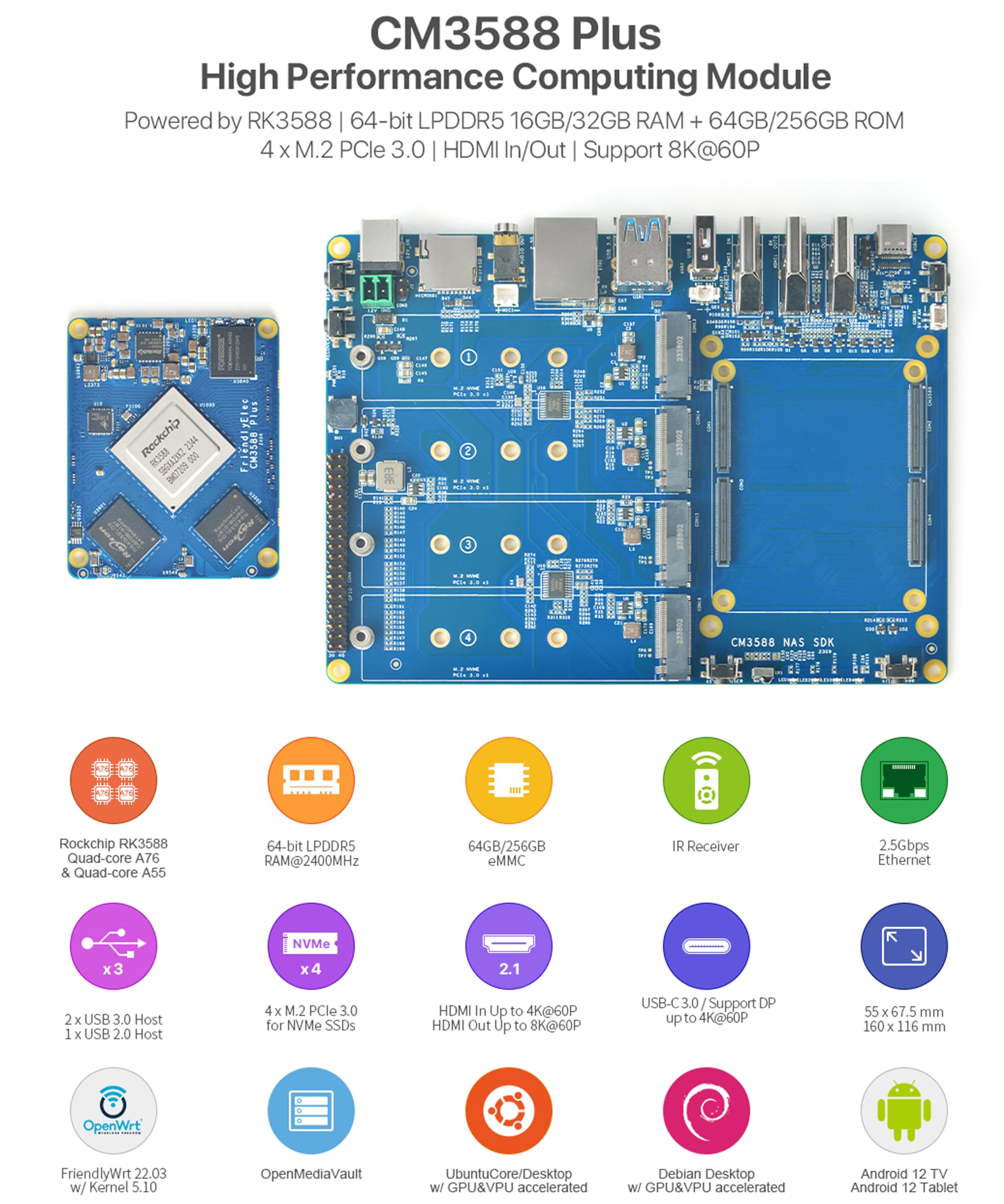

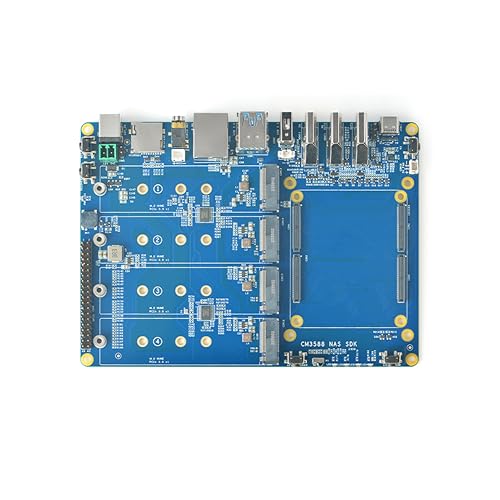

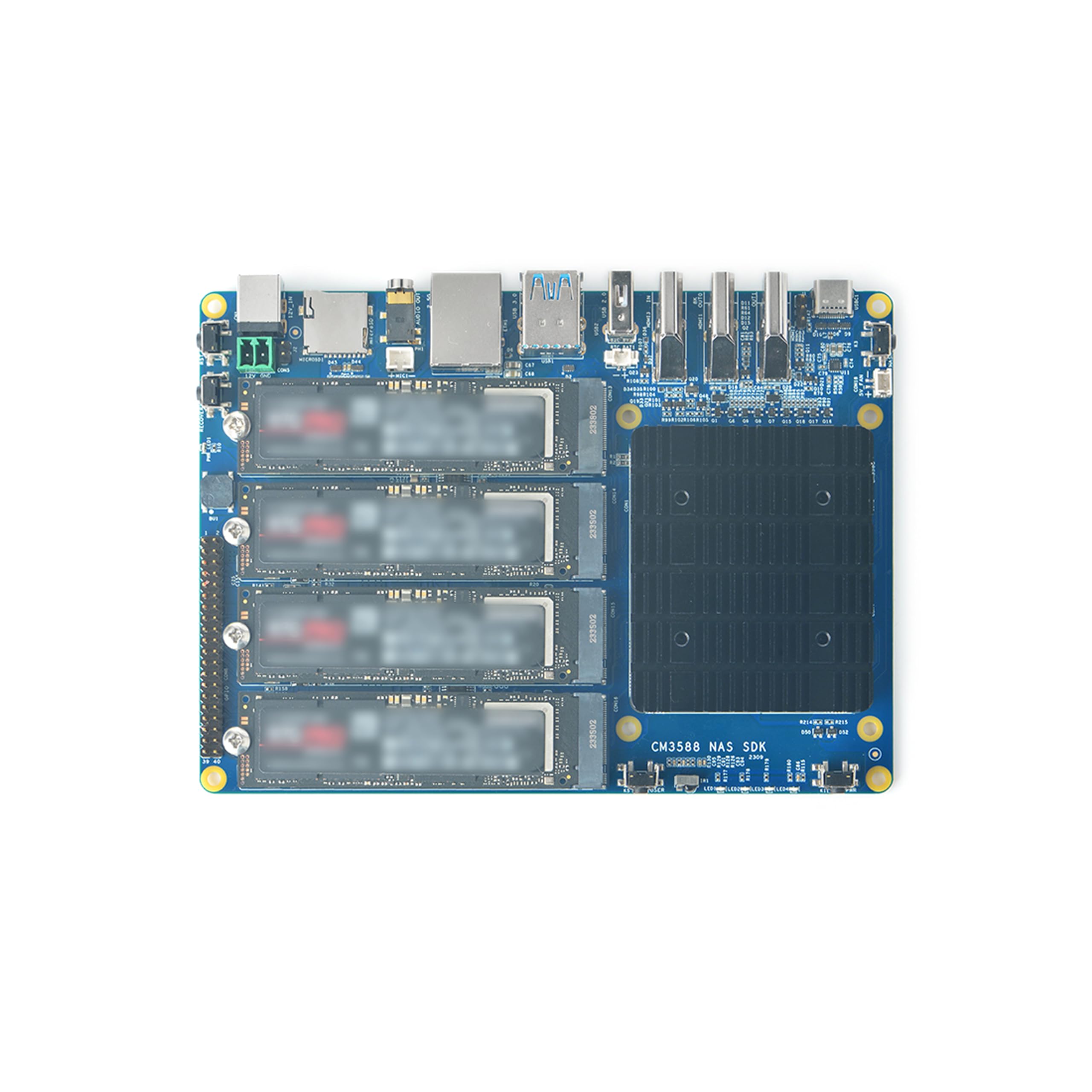

Rich Peripheral Interface The CM3588 NAS Kit carrier board boasts a variety of peripherals and expansion interfaces. It can connect to a carrier borad supporting 4X NVMe high-speed solid-state drives with read/write speeds of up to 1GB/s. Additionally, it includes dual HDMI-Out display interfaces, 1x HDMI-In interface, 2x USB3.0 ports, 1x USB2.0 port, 1x 2.5G Ethernet interface, and more.

Various Operating Systems The CM3588 NAS Kit supports the OpenMediaVault NAS system, and including Android, Ubuntu, Debian, Buildroot and OpenWrt. It has well established software support. It is a perfect platform for startups to develop applications and prototypes in cloud server, facial detection, machine vision, VR, autonomous-driving, deep learning, AI, Network Attached Storage device and etc.

Wiki Getting Start "wiki.friendlyelec.com/wiki/index.php/CM3588"; All after-sales questions please click "WayPonDEV" store and ask the question. Or please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".
